Ergo 115 wheelchair
For availability and orders call
01302 302302
Swing-away footrest
About

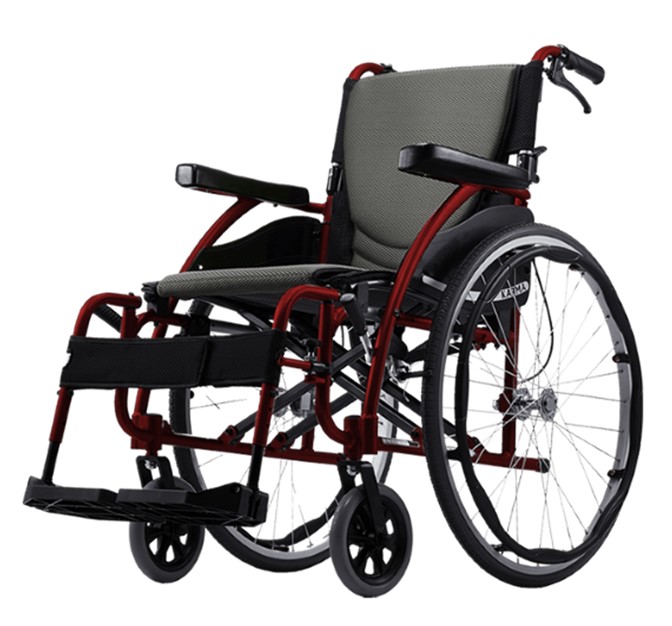

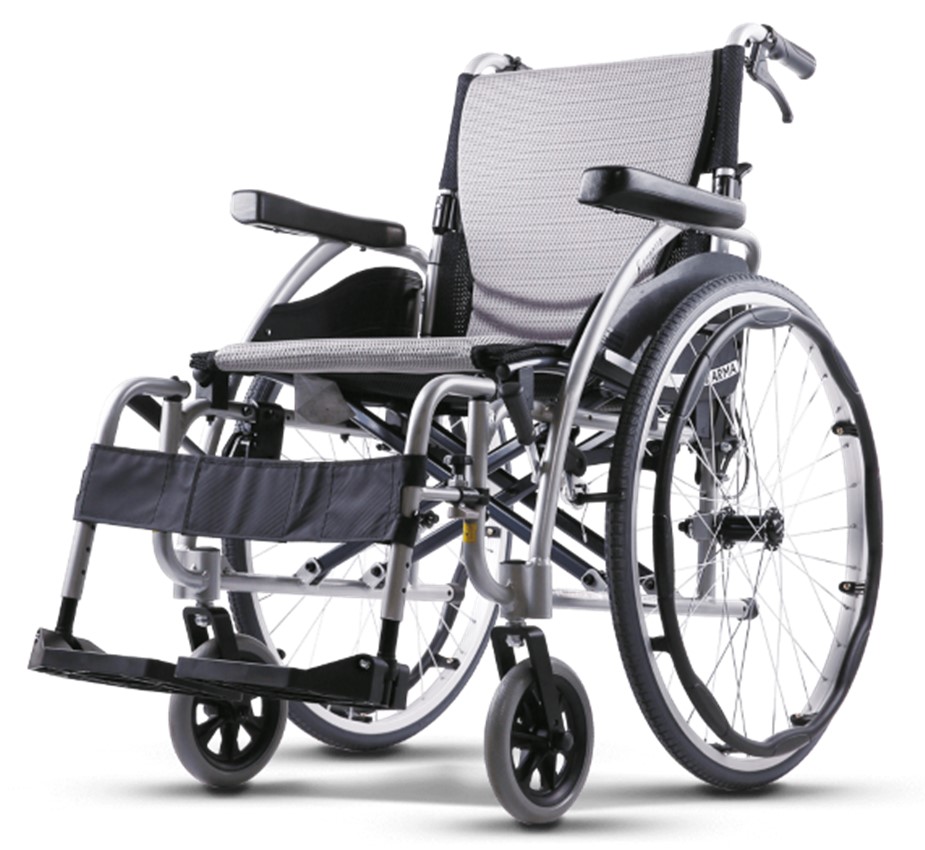

The Ergo 115 is a lightweight aircraft grade aluminium wheelchair which breaks down to 8kg (18lbs).
The lightweight frame is braced by a system of double cross braces which increase the wheelchair’s strength and durability. The streamline oval tubes not only make the wheelchair look great but also add strength to the wheelchair structure.

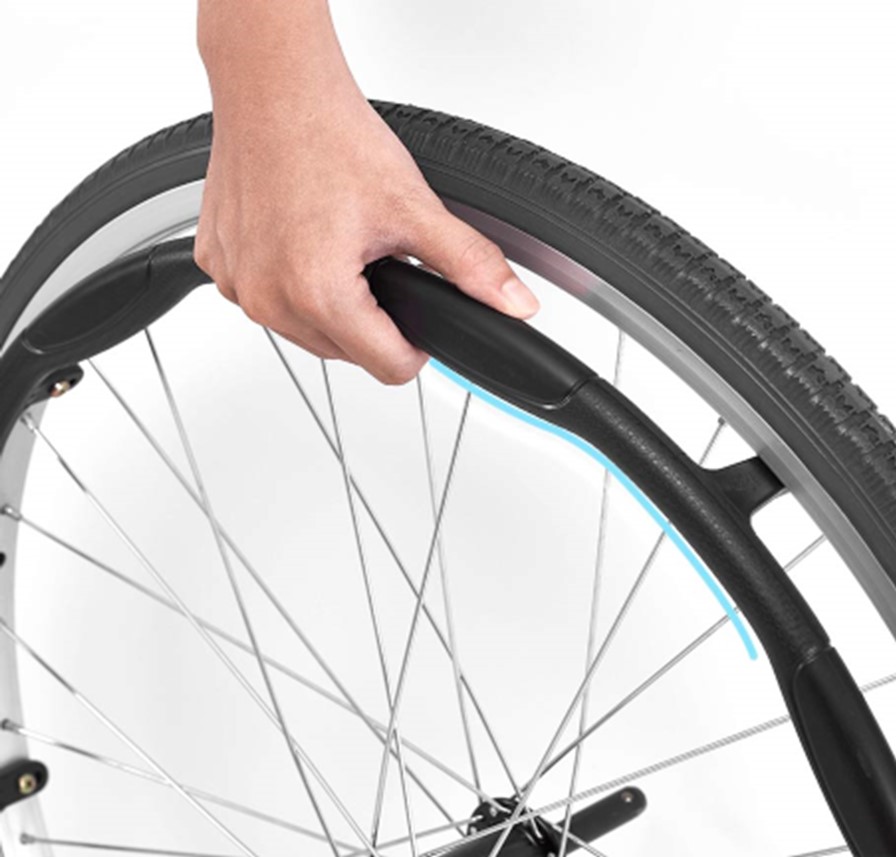

The Ergo 115 is packed full of innovative features that you would expect from a Karma wheelchair including; slowing brakes, quick release wheels, Detachable upholstery and the patented Ergo seating.
| Model | S-Ergo 115 |
| Rear wheel size | 24” |
| Seat width | 16” / 18” / 20” |
| Wheels (inch) | 7”x24” |
| Brake | Wire brake |
| Overall length (mm) | 1020 |
| Overall width (mm) | 590 / 640 / 690 |
| Overall height (mm) | 905 |
| Seat width (mm) | 407 / 457 / 507 |
| Seat depth (mm) | 432(17”) |
| Seat height (mm) | 510(20”) |
| Back height (mm) | 410 |
| Armrest height (mm) | 200 |
| Calf length (mm) | 360~435 |
| Collapsed L*W*H | 805x325x710 |
| Seat angle | 5 |
| Total weights (kg) | 13.3(+0.5) |
| Weight capacity (kg) | 115 |
Crash Test Approved
The S-Ergo 115 is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.

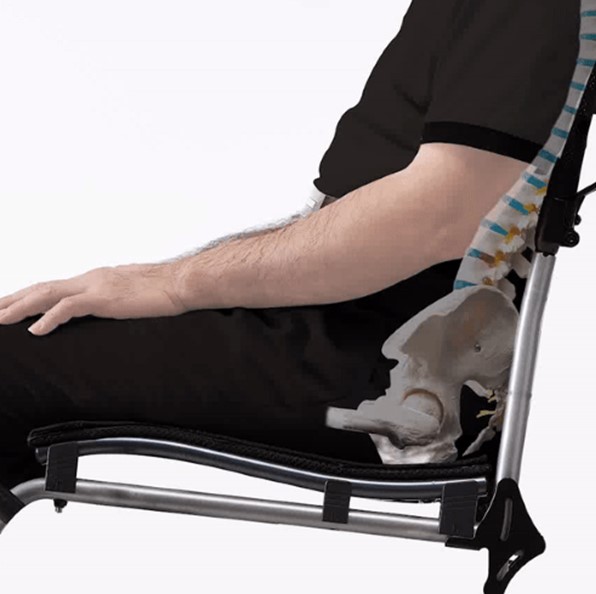

S-Ergo Seating System
The S-Ergo Seating is a patented seating system which; helps promote pressure relief and helps to stop the user sliding forward in the seat. This makes the wheelchair comfortable and helps maintain good posture.
Ergo 115
Options
